Godotでジャンプキングライクチュートリアル Part 2: プレイヤーの実装
Godot Engine バージョン4.3
このチュートリアルでは、Godot 4.3 を使用して、ジャンプキングのような2Dプラットフォーマーゲームを作成する方法を解説します。プレイヤーの移動、ジャンプ、物理演算を実装しながら、ゲームの基本的な構成について学びます。
ステップ1: プレイヤーの構成
以下のような構成でノードを追加します。
Player (CharacterBody2D)├── Dust (CPUPatricles2, 砂煙エフェクト)├── AnimatedSprite2D (アニメーション管理)├── CollisionShape2D (物理判定)├── JumpBar (ProgessBar, ジャンプバー)├── JumpSe (AudioStreamPlayer2D, ジャンプのサウンド再生)├── HitSe (AudioStreamPlayer2D, 衝撃のサウンド再生)├── JumpTimer (Timer, ジャンプタイマー中の処理)
Dust
→ 砂煙エフェクトCollisionShape2D
→ 物理判定、CapsureShape2Dにしてプレイヤーを囲むJumpBar
→ ジャンプバーJumpSe
→ ジャンプのサウンド再生HitSe
→ 壁に当たった時の衝撃のサウンド再生JumpTimer
→ ジャンプタイマー中の処理を行うタイマー

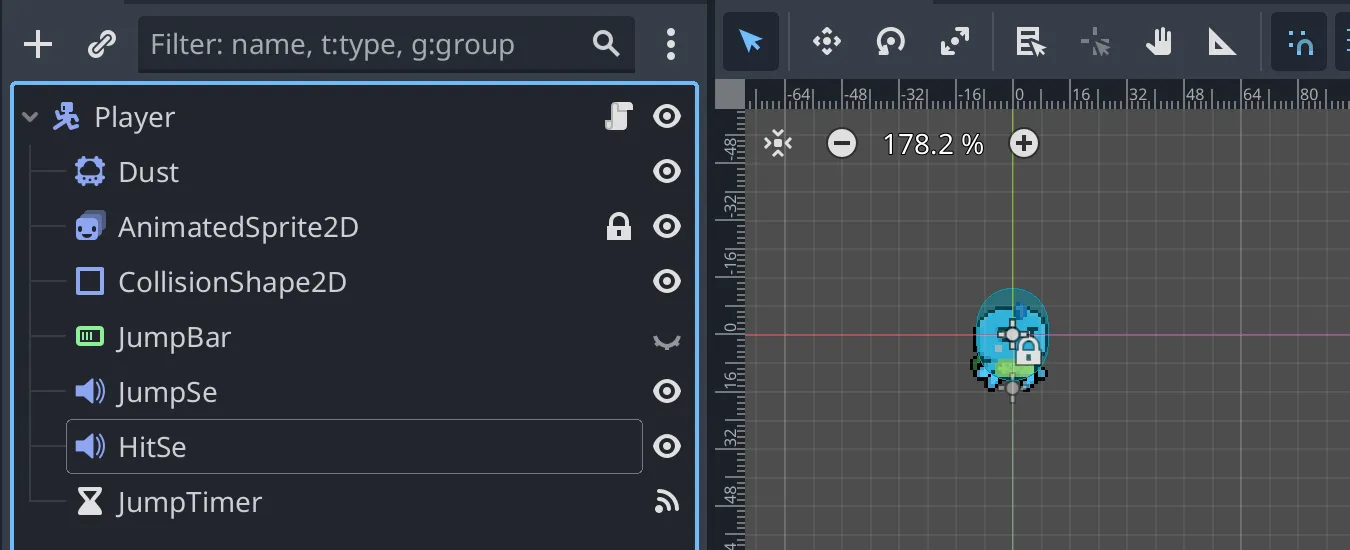

上記の画像のようになっていればOKです!

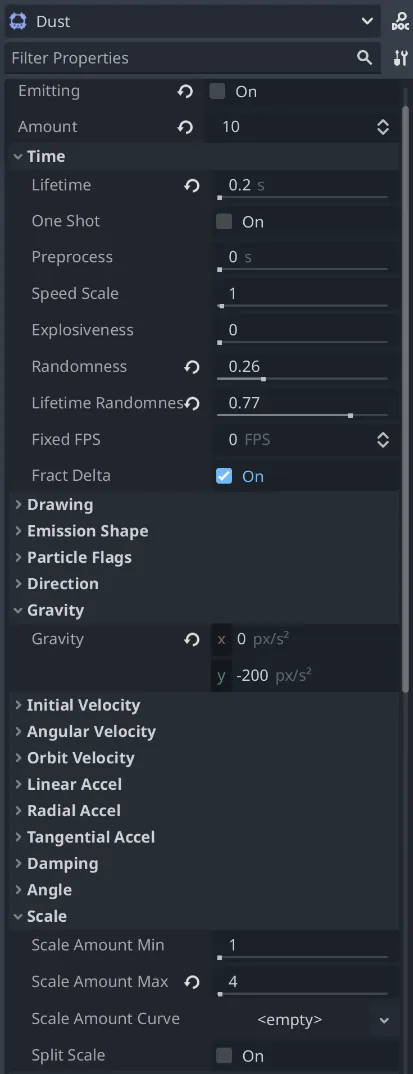

砂煙エフェクトの設定はお好みですが、ギルガメは下記になります。
ステップ2: スクリプトを追加
プレイヤーを制御するスクリプトを
player.gd
に追加します。extends CharacterBody2D
# プレイヤーの移動速度とジャンプの速度を設定@export var SPEED = 300@export var JUMP_VELOCITY = -500
# 入力用のUIコントロール(ジョイスティックとジャンプボタン)@export var joystick:Control@export var jump_touch:TouchScreenButton
# デフォルトの2D物理重力を取得var gravity = ProjectSettings.get_setting("physics/2d/default_gravity")
# 一時的な速度の保存用変数var temp_velocity = Vector2.ZERO
# ジャンプ関連の状態フラグと値var jump_mode = falsevar jump_force = 0
# アニメーション状態と移動方向を追跡var player_anim = "idle"var direction = 0
# プレイヤーの最後のY位置とその更新状態var last_pos_y = -99999var is_last_posY = true
# 移動可能かどうかを制御するフラグvar is_can_move = true
# ジャンプタイマーとスライドモードのフラグvar jump_timer = falsevar slide_mode = false
# 毎フレームの物理処理func _physics_process(delta): # ジャンプモード中の処理 if jump_mode: last_pos_y = position.y jump_force += delta $JumpBar.value = jump_force # ジャンプバーの値を増加
# 地面にいない場合は重力を適用 if not is_on_floor(): if is_last_posY: last_pos_y = position.y is_last_posY = false velocity.y += gravity * delta
# ジャンプの入力処理 if Input.is_action_just_pressed("jump") and is_on_floor() and is_can_move: jump_mode = true if Global.show_jump_bar: $JumpBar.show()
# ジャンプ終了時の処理 if Input.is_action_just_released("jump") and is_on_floor(): if jump_force > 1.2: jump_force = 1.2 # ジャンプ力の最大値を制限 velocity.y = JUMP_VELOCITY * jump_force if jump_force > 0: $JumpSe.playing = true # ジャンプ音を再生 jump_mode = false jump_timer = true $JumpTimer.start() $JumpBar.hide() jump_force = 0
# 移動方向の取得 direction = 0 if is_on_floor() and is_can_move: direction = Input.get_axis("left", "right") # キー入力で方向を設定 if joystick.get_joystick().x > 0.005: # ジョイスティック入力で方向を設定 direction = 1 elif joystick.get_joystick().x < -0.005: direction = -1
# ジャンプタイマー中の処理 if jump_timer and $JumpBar.value > 0 and is_can_move: $JumpBar.value = 0 if $AnimatedSprite2D.flip_h: direction = -1 else: direction = 1
# 水平方向の速度設定 if direction and not jump_mode: velocity.x = direction * SPEED last_pos_y = position.y elif is_on_floor(): velocity.x = move_toward(velocity.x, 0, SPEED) # 停止時に速度を減少
# 衝突処理用の速度保存 temp_velocity = velocity
# 速度を適用してスライド移動 move_and_slide()
# アニメーションの更新 update_animation()
# 衝突処理(空中での壁への接触時) if get_slide_collision_count() > 0 and not is_on_floor() and not slide_mode: var collision = get_slide_collision(0) if collision != null: velocity = temp_velocity.bounce(collision.get_normal()) # 壁で跳ね返る $HitSe.playing = true # 衝突音を再生
# プレイヤーのアニメーションを更新func update_animation(): if is_on_floor(): if jump_mode: $Dust.emitting = false $AnimatedSprite2D.play("prepare") elif direction: $Dust.emitting = true $AnimatedSprite2D.play("run") $AnimatedSprite2D.flip_v = false $AnimatedSprite2D.flip_h = direction < 0 elif position.y > (last_pos_y + 300): $AnimatedSprite2D.play("down") $Dust.emitting = false else: $AnimatedSprite2D.play("idle") $Dust.emitting = false else: if velocity.x != 0: $AnimatedSprite2D.flip_v = false if not slide_mode: $AnimatedSprite2D.flip_h = velocity.x < 0 if velocity.y < 0: $AnimatedSprite2D.play("jump-up") else: $AnimatedSprite2D.play("jump-down") $Dust.emitting = false
# ジャンプバーを非表示にするfunc hide_jumpbar(): Global.show_jump_bar = false
# ジャンプを開始するfunc start_jump(): if not jump_mode and is_on_floor(): jump_mode = true if Global.show_jump_bar: $JumpBar.show()
# ジャンプを終了するfunc end_jump(): if jump_mode and is_on_floor(): if jump_force > 1.2: jump_force = 1.2 velocity.y = JUMP_VELOCITY * jump_force if jump_force > 0: $JumpSe.playing = true jump_mode = false jump_timer = true $JumpTimer.start() $JumpBar.hide() jump_force = 0
# ジャンプタイマーのタイムアウト処理func _on_jump_timer_timeout(): jump_timer = false
# プレイヤーの向きを設定func flip_player(flip): $AnimatedSprite2D.flip_v = false $AnimatedSprite2D.flip_h = flip
これで基本的な移動とジャンプが実装されました。
基本的なジャンプキングライクが完了です!
次は下記の実装でオリジナルを出して頑張ってみてください!
- ゲームクリア実装
- 別のステージを実装
- タイマーを実装
- ランキング形式実装など
みんなで楽しくGodot開発を盛り上げていきましょう!
よいゲーム開発ライフを!
